Our small-scale mixers are ideal for small batches where quantities and compositions vary. They are suitable for small production runs, pilot lines and development labs.
Machine variants
Basic version
- Access door on the side of the pan
- Feeding from above
- Bottom discharge
Hinged (W-type)
- Improved accessibility thanks to hinged mixing pan cover
- Feeding from above or directly through the hinged mixing pan cover
- Bottom discharge
Tilting (T-type)
- Optimum accessibility thanks to hinged mixing pan cover and hinged mixing pan
- Feeding from above or directly through the hinged cover
- Tilt pan to discharge
R05
Maximum variability
- Flexible solution for quantities from 15 to 40 liters with variable inclination
- Tilt for complete discharge
- Easy to clean, ideal for upscaling thanks to high variability and rapid tool changing
- Available as T-type and dissolving mixer

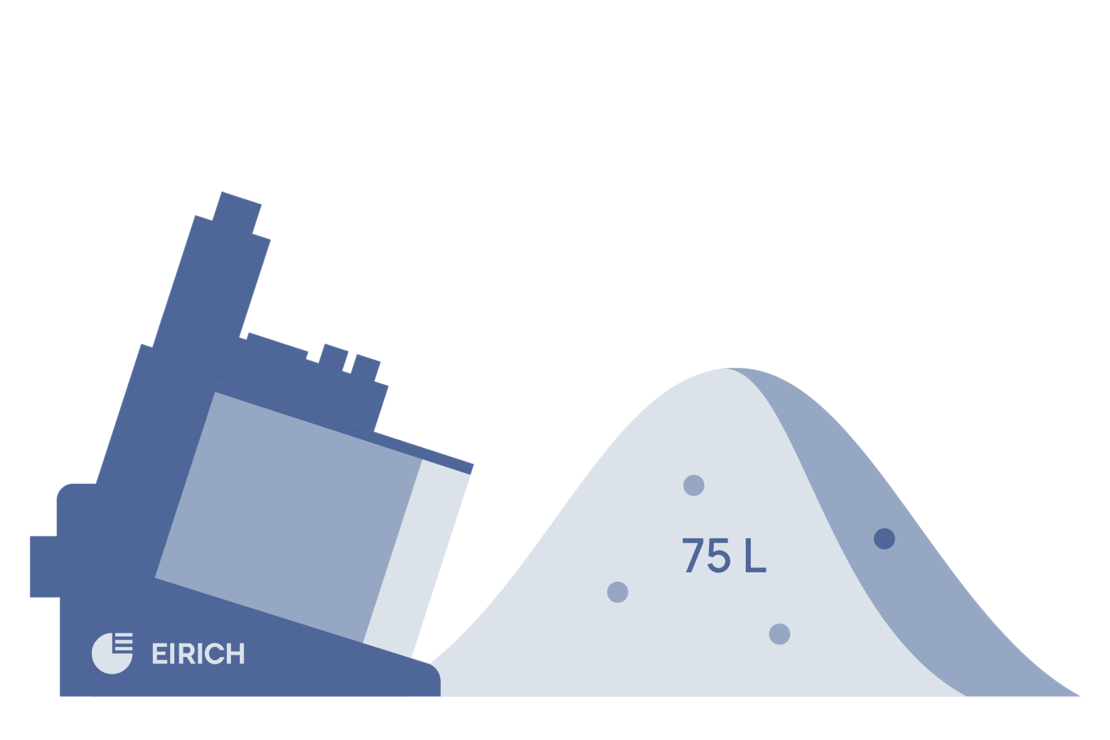

R08
Enhanced convenience
- Flexible solution for quantities from 25 to 75 liters with variable inclination
- Bottom discharge
- Flexible feeding for easier access
- Available as W-type

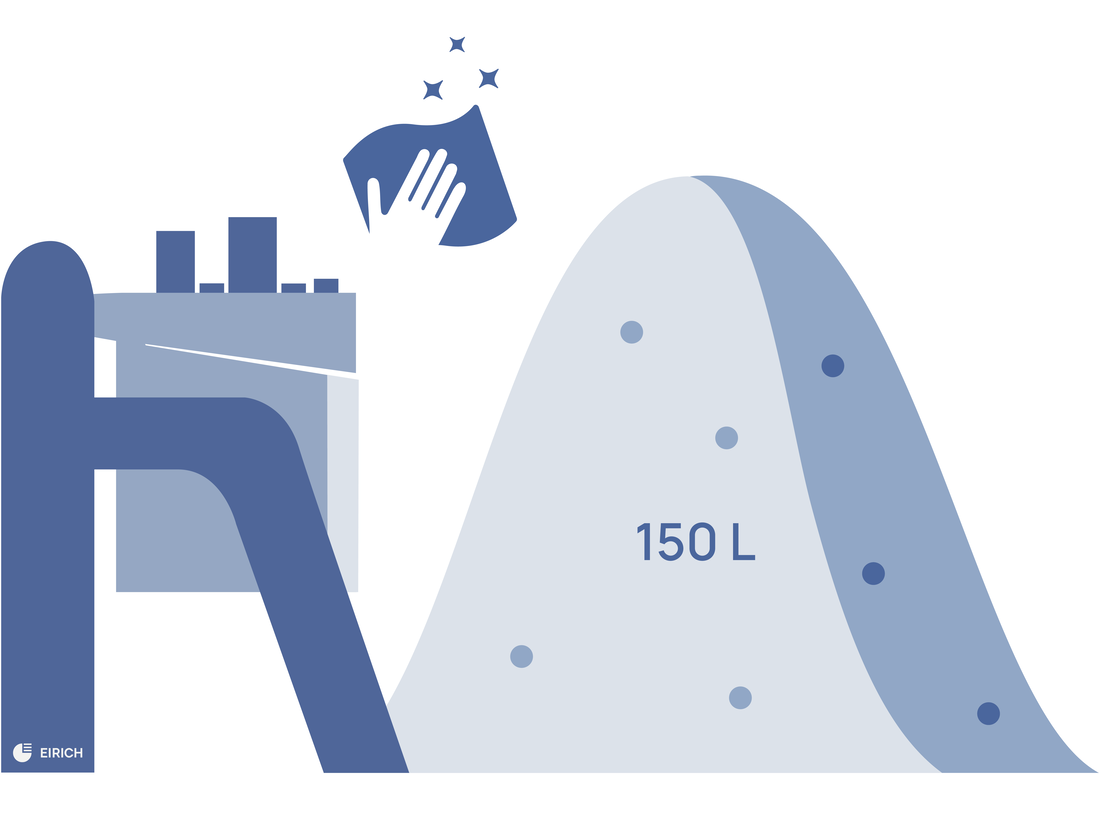

R09
The flexible one
- Flexible solution for quantities from 50 to 150 liters with variable inclination
- Bottom discharge
- Tilt for complete discharge
- Available as basic version, W-type and T-type
Features
R05 | R08 | R09 | |
| Effective capacity (liters) | 15 - 40 | 25 -75 | 50 - 150 |
| Subframe wedge for fixed change of inclination to 0°, 10°, 20° | ✓ | ✓ | ✓ |
| Hydraulic tilt adjustment for flexible inclination changes to 0° – 30° | ✓ | x | ✓ |
| High-pressure cleaning | ✓ | ✓ | ✓ |
| Stainless steel version | ✓ | ✓ | ✓ |
| Explosion-proof (XP) design | ✓ | ✓ | ✓ |
| Temperature gage in wall scraper | ✓ | ✓ | ✓ |
| Moisture probe in pan bottom | ✓ | ✓ | ✓ |
| Rheology measurement QualiMaster RT1 | ✓ | ✓ | ✓ |
| Double-jacket temperature regulation | ✓ | x | x |
| Heater | ✓ | ✓ | ✓ |
Leaflet
(, 0 B)
(, 0 B)
The Eirich small-scale mixer series
